Butterfly Valves

BELIMO D6700NL

BELIMO D6700NL Butterfly valve, 2-way, DN 700, Flange with Lug types PN 16, ps 1600 kPa, kvs 11760 m³/h, kvmax 42800 m³/h, Fluid temperature -20...120°C

BELIMO D6700N

BELIMO D6700N Butterfly valve, 2-way, DN 700, Flange with Wafer types PN 16, ps 1600 kPa, kvs 11760 m³/h, kvmax 42800 m³/h, Fluid temperature -20...120°C

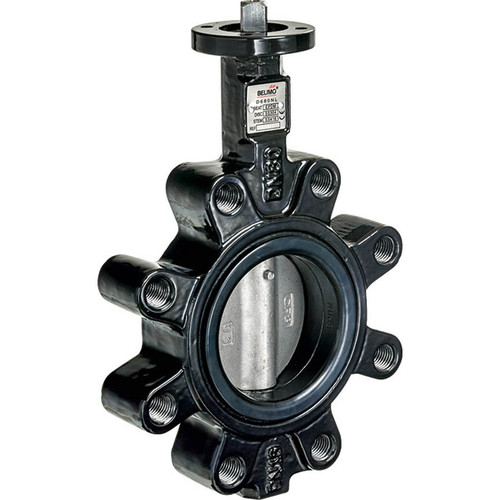

BELIMO D6600NL

BELIMO D6600NL Butterfly valve, 2-way, DN 600, Flange with Lug types PN 16, ps 1600 kPa, kvs 10900 m³/h, kvmax 37300 m³/h, Fluid temperature -20...120°C

BELIMO D6600N

BELIMO D6600N Butterfly valve, 2-way, DN 600, Flange with Wafer types PN 16, ps 1600 kPa, kvs 10900 m³/h, kvmax 37300 m³/h, Fluid temperature -20...120°C

BELIMO D6500NL

BELIMO D6500NL Butterfly valve, 2-way, DN 500, Flange with Lug types PN 16, ps 1600 kPa, kvs 7060 m³/h, kvmax 24100 m³/h, Fluid temperature -20...120°C

BELIMO D7300WL/BAC

BELIMO D7300WL/BAC 2x 3-way butterfly valve (2x butterfly valve with 2x actuator without T-piece), 3-way, DN 300, Flange with Lug types PN 16, ps 1600 kPa, kvs 1700 m³/h, kvmax 4700 m³/h, Fluid temperature -20...120°C, 160 Nm, AC 24...240 V / DC 24.....

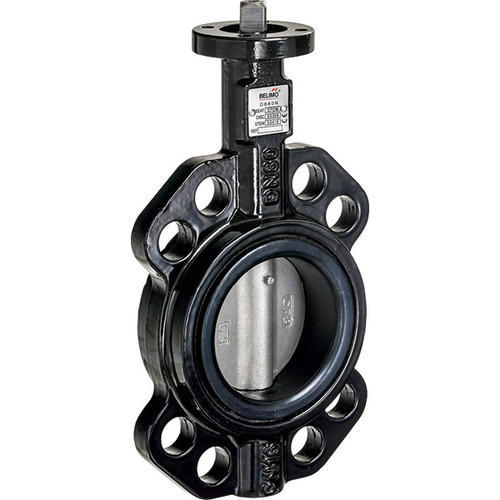

BELIMO D6500N

BELIMO D6500N Butterfly valve, 2-way, DN 500, Flange with Wafer types PN 16, ps 1600 kPa, kvs 7060 m³/h, kvmax 24100 m³/h, Fluid temperature -20...120°C

BELIMO D7250WL/BAC

BELIMO D7250WL/BAC 2x 3-way butterfly valve (2x butterfly valve with 2x actuator without T-piece), 3-way, DN 250, Flange with Lug types PN 16, ps 1600 kPa, kvs 1200 m³/h, kvmax 3000 m³/h, Fluid temperature -20...120°C, 160 Nm, AC 24...240 V / DC 24.....

BELIMO D6450NL

BELIMO D6450NL Butterfly valve, 2-way, DN 450, Flange with Lug types PN 16, ps 1600 kPa, kvs 5490 m³/h, kvmax 18800 m³/h, Fluid temperature -20...120°C

BELIMO D7200WL/BAC

BELIMO D7200WL/BAC 2x 3-way butterfly valve (2x butterfly valve with 2x actuator without T-piece), 3-way, DN 200, Flange with Lug types PN 16, ps 1600 kPa, kvs 800 m³/h, kvmax 1800 m³/h, Fluid temperature -20...120°C, 160 Nm, AC 24...240 V / DC 24...125...

BELIMO D7150NL/BAC

BELIMO D7150NL/BAC 2x 3-way butterfly valve (2x butterfly valve with 2x actuator without T-piece), 3-way, DN 150, Flange with Lug types PN 16, ps 1600 kPa, kvs 400 m³/h, kvmax 1100 m³/h, Fluid temperature -20...120°C, 160 Nm, AC 24...240 V / DC 24...125...

BELIMO D6450N

BELIMO D6450N Butterfly valve, 2-way, DN 450, Flange with Wafer types PN 16, ps 1600 kPa, kvs 5490 m³/h, kvmax 18800 m³/h, Fluid temperature -20...120°C
